Rated Voltage(Ur): 3kV – 36kV
* Nominal Discharge Current(In): 5kA or 10kA
* Long Duration Current Impulse: 150A or 250A
* High Current Impulse(Imax): 65kA or 100kA
* Pressure relief capability: 16kA or 20kA
* Creepage distance: ≥31mm/kV

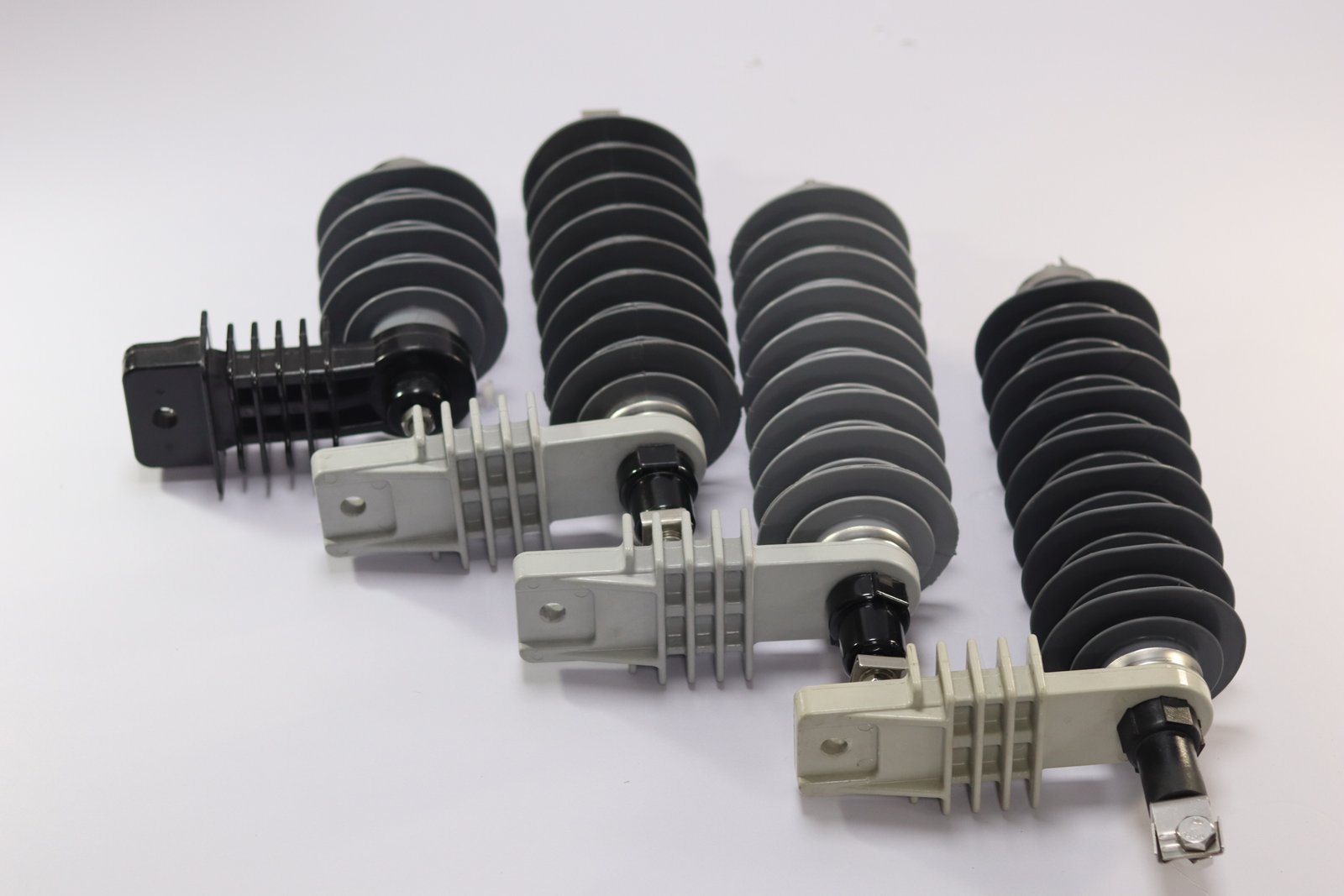

Product Name: lightning Surge Arrester
Model Number: YH10W-09
Housing: silicone rubber
Type: metal oxide surge arrester
Certificate: ISO/ANSI/IEC Certification
color: gray
Material: Silicone rubber,Varistor block
mounting plate: include
NEMA bracket: include
Application: High Voltage
Safety Standards: IEC
IEC60099-4
OEM Production: accept
Place Of Origin: China
Packing: Carton/ pallet /Wooden box
